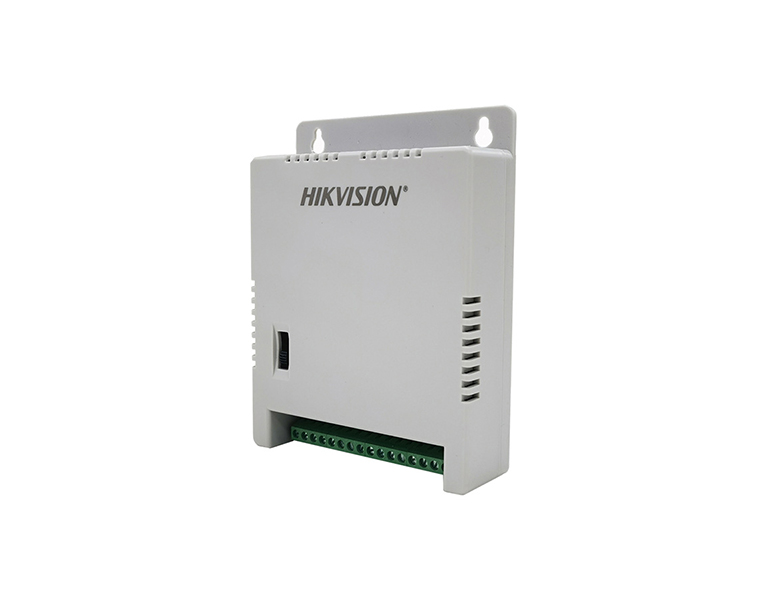

DS-2FA1205-C8_1.jpg • 60 W, 12 VDC/1 A max per channel, max total current is 5 A
• Over current/short circuit/over voltage protection
• Good EMC performance
• Compact size; applicable to cameras
• 150 to 285 VAC wide voltage input
| Εγγυήσεις - Επιστροφές: | |
| Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
| 20 ημέρες | 36 μήνες |
| Specifications | |
| Model | DS-2FA1205-C8 |
| Parameters | Switching Mode Power Supply |
| Appearance | White |
| Input | 150 to 285 VAC, 47 Hz to 63 Hz |
| Output | 12 VDC/1 A per channel |
| Cable Length Compensation | Normal: 12 VDC Long: 13.5 VDC Ex-Long: 15 VDC |
| Ripple & Noise | 0.15 Vp-p (150 mV) |
| AC Input Connector | C8 |
| DC Output Connector | DC Plug: grid terminal |
| LED Indicator | Green |
| Operating Conditions | 0°C to 40°C, Humidity: 10% to 95% (non-condensing) |
| Storage Conditions | -40°C to 80°C, Humidity: 5% to 95% (non-condensing) |
| Dimension | 114 mm x 109.5 mm x 33 mm |
