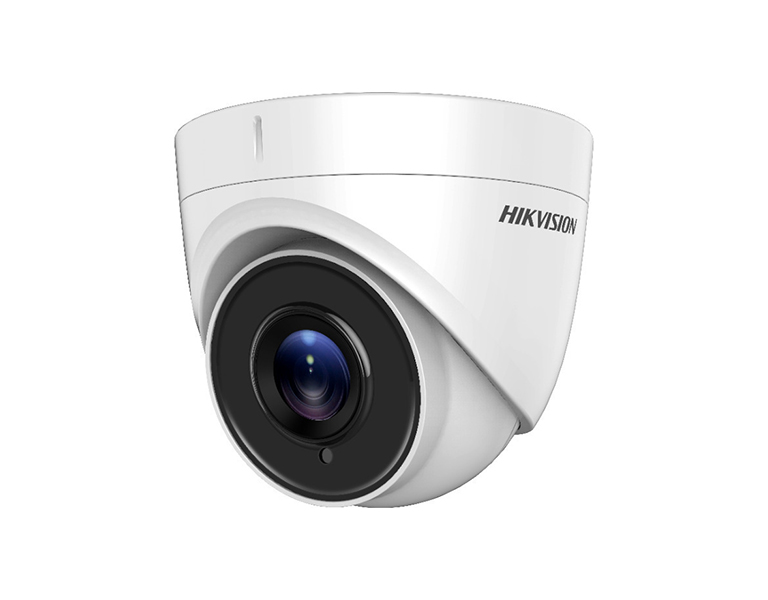

DS-2CE78U8T-IT3-2.8.jpg ΠΡΟΣΟΧΗ!!! Στην συσκευασία δεν συμπεριλαμβάνεται τροφοδοτικό!!!
• 8.29 MP high performance CMOS
• Ultra-low light
• 3840 x 2160 resolution
• 120 dB true WDR, 3D DNR
• EXIR 2.0, smart IR, up to 60 m IR distance
• IP67
• Up the coax (HIKVISION-C)
| Εγγυήσεις - Επιστροφές: | |
| Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
| 20 ημέρες | 36 μήνες |
| Specifications | |
| Camera | |
| Image Sensor | 8.29 megapixel progressive scan CMOS |
| Signal System | PAL/NTSC |
| Frame Rate | PAL: 8 , 5 MP@20fps, 4 MP@25fps, 1080p@25fps NTSC: 8 MP@15fps, 5 MP@20fps, 4 MP@30fps, 1080p@30fps |
| Resolution | 3840 (H) × 2160 (V) |
| Min. illumination | Color: 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/12.5 s to 1/10,000 s NTSC: 1/15 s to 1/10,000 s |
| Slow Shutter | Max. 16 times |
| Lens | 2.8 mm fixed lens |
| Horizontal Field of View | 102.2°(2.8 mm), 79° (3.6 mm), 50.8° (6 mm) |
| Lens Mount | M12 |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0°to 360°, Tilt: 0°to 75°, Rotate: 0°to 360° |
| Synchronization | Internal synchronization |
| WDR (Wide Dynamic Range) | 120 dB |
| Menu | |
| AGC | Support |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| White Balance | Auto/Manual/Natural |
| Privacy Mask | ON/OFF, 4 programmable privacy masks |
| BLC (Backlight Compensation) | Support |
| 3D DNR (Digital Noise Reduction) | Level 1 to 10 |
| Language | English |
| Functions | Contrast, Sharpness, Saturation, Mirror, Defog, HLC |
| Interface | |
| TVI Video Output | 1 HD analog output |
| CVBS Video Output | 1 CVBS output (75Ω/BNC) |
| General | |
| Operating Conditions | -40 °C to 60 °C Humidity: 90% or less (non-condensation) |
| Power Supply | 12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera. |
| Power Consumption | Max. 4.8 W |
| Ingress Protection | IP67 |
| Material | Enclosure: Plastic Main Body: Metal Mounting Base: Plastic |
| IR Range | Up to 60 m |
| Communication | Up the coax, Protocol: HIKVISION-C (TVI output) |
| Dimension | Ø 109.8 mm x 96.3 mm ( |
| Weight | Approx. 360 g |
