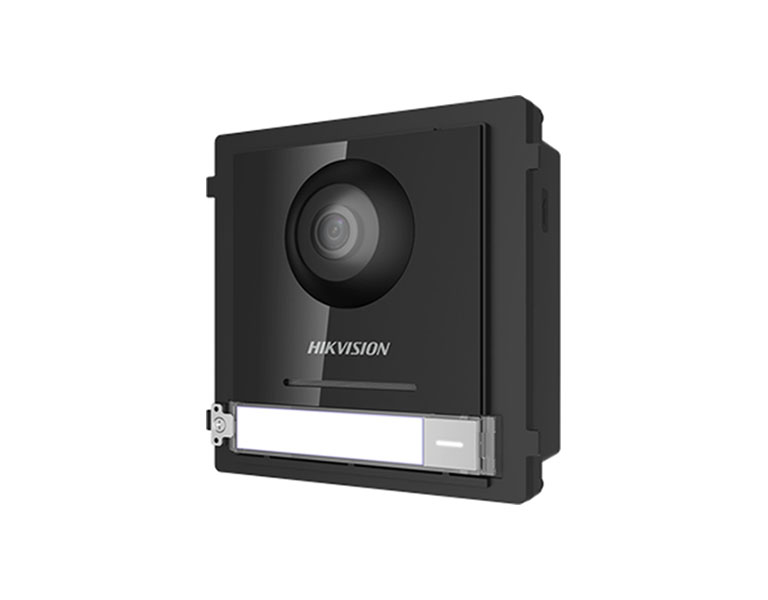

DS_KD8003_IME1.jpg • 2 MP HD video intercom function
• Access control function
• Noise suppression and echo cancellation
• H.264 video compression
• Low illumination
• Tampering alarm supported
• Fisheye camera with IR supplement light
• Supports sub-modules' access (max. 8)
• Nametag customization
• Easy to and extend
| Εγγυήσεις - Επιστροφές: | |
| Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
| 20 ημέρες | 36 μήνες |
| Specifications | |
| System parameters | |
| Processor | Embedded MCU Processor |
| Operation system | Embedded Linux Operation System |
| Operation method | Physical Button |
| Video parameters | |
| Camera | Low Illumination 2 MP HD IR Camera |
| Video compression standard | H.264 |
| Resolution | Main Stream: 1920 x 1080 Sub Stream: 720 x 480 |
| BLC | Supported |
| DNR | Supported |
| WDR | Supported |
| Anti-flicker | 50 Hz, 60 Hz |
| Field of View | Horizontal: 180° Vertical: 96° |
| Audioparameters | |
| Audio input | Built-in Omnidirectional Microphone |
| Audio output | Built-in Loudspeaker(More than 85 dB within 20 cm) |
| Audio compression standard | G.711 U |
| Audio compression rate | 64 Kbps |
| Audio quality | Noise Suppression and Echo Cancellation |
| Light supplement | |
| Light supplement mode | IR Supplement |
| Network parameters | |
| Ethernet | 10/100 Mbps Self-Adaptive Ethernet |
| Network protocol | TCP/IP, RTSP |
| Alarm parameters | |
| Tampering alarm | 1 |
| Interfaces | |
| Module-connecting | 1 |
| I/O input | 4 |
| Debug | 1 |
| Relay | 2 (30 V, 1 A) |
| General | |
| Physical button | 1 |
| Power Supply | 12 VDC/PoE (IEEE 802.3af) |
| Power consumption | ≤10 W |
| Working temperature | -40° C to +60° C |
| Working humidity | 10% to 95% |
| IP protection level | IP65 |
| Installation | Flush Mounting, Surface Mounting |
| Dimensions (L x W x H) | 98 mm x 99.8 mm x 43.9 mm |
