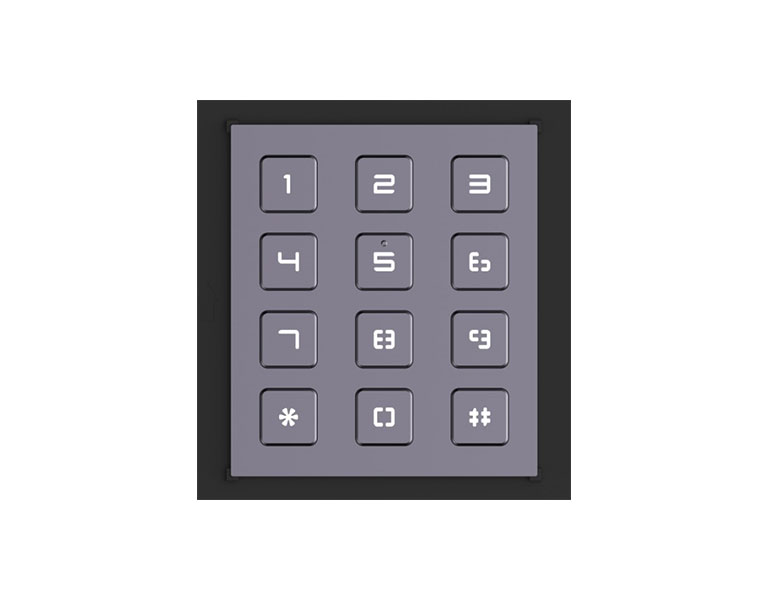

DS_KD_KP.jpg Features:
• Supports unlock the door via entering password
• Supports call the resident via entering room No.
• Backlight compensation
• Easy to and extend
| Εγγυήσεις - Επιστροφές: | |
| Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
| 20 ημέρες | 36 μήνες |
| Specifications | |
| Processor | Embedded MCU Processor |
| Operation method | Physical button |
| Module connecting | 2 (1 input, 1 output) |
| Debug | 1 |
| Physical button | 12 |
| DIP switch | 8 |
| Power input | 12 VDC (powered by the other module) |
| Power output | 12 VDC (powered by the other module) |
| Power consumption | ≤ 2 W |
| Working temperature | -40°C to +55°C |
| Working humidity | 10% to 95% |
| IP protection level | IP65, IK7 |
| Installation | Flush mounting, surface mounting |
| Dimensions | 98.2 mm x 100 mm x 34.2 mm |
| Weight | 529 g (with packaging) 265 g (without packaging) |
