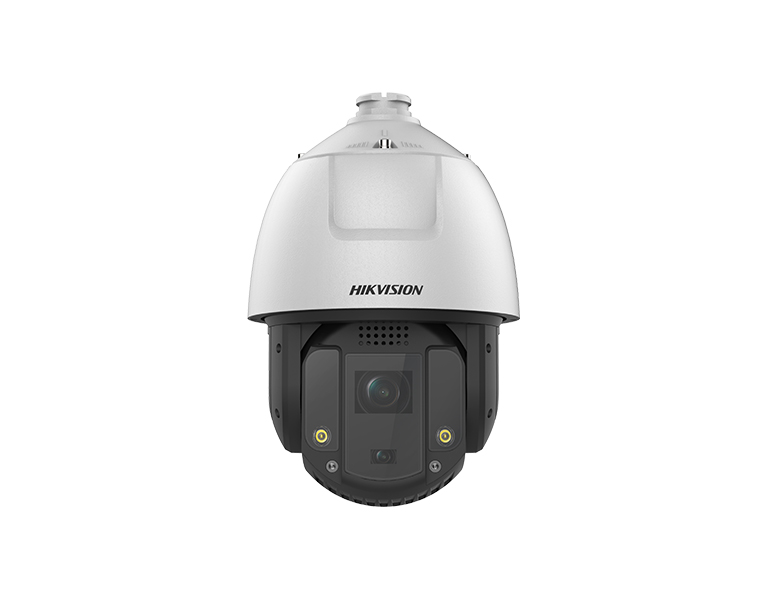

DS-2DE7S425MW-AEB(F1)(S5).jpg • Single channel mode provides a wide-angle view to cover large areas. Dual channel mode provides both overview and detailed view with panoramic and PTZ channels
• Accurate human and vehicle target classification and alarm based on deep learning algorithm in single channel mode
• Supports face capture in single channel mode. Up to 5 faces captured at the same time
• Active strobe light and audio alarm to warn intruders off
• High quality imaging with 4 MP resolution
• 24/7 colorful imaging for the fixed-focal lens and excellent low-light performance with powered-by-DarkFighter technology for the varifocal lens
• 25x optical zoom provides close up views over expansive areas
• Expansive night view with up to 200 m IR distance
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 36 months |
| Specifications | |
| Camera | |
| Image Sensor | [fixed-focal] 1/1.8" progressive scan CMOS; [varifocal] 1/2.8" progressive scan CMOS |
| Min.Illumination | [fixed-focal] Color: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with light; [varifocal] Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @(F1.6, AGC ON); 0 Lux with IR |
| Shutter Speed | 1 s to 1/30000 s |
| Slow Shutter | yes |
| Focus | Auto, semi-auto, manual |
| Day & Night | [fixed-focal] 24/7 colorful imaging; [varifocal] ICR |
| Day/Night Switch | day, night, auto, scheduled-switch |
| BLC | yes |
| WDR | digital WDR |
| HLC | yes |
| 3D DNR | yes |
| Defog | yes |
| EIS | yes |
| Regional Exposure | yes |
| Regional Focus | yes |
| Image Settings | saturation, brightness, contrast, sharpness |
| Image Parameters Switch | yes |
| White Balance | auto, ATW, sodium lamp, fluorescent lamp, indoor, outdoor, MWB, Locked WB |
| Digital Zoom | 16x |
| Optical Zoom | 25x |
| Privacy Mask | up to 24 masks, polygon region, mosaic mask, mask color configurable |
| SNR | >52dB |
| General Function | mirror, password protection, watermark, IP address filter |
| Lens | |
| Focal Length | [fixed-focal] 4 mm; [varifocal] 4.5 mm to 112.5 mm, 25× Optical |
| Zoom Speed | approx. 7.4 s |
| FOV | [fixed-focal] horizontal field of view: 88.7°, vertical field of view: 46.5°, diagonal field of view: 105.0°; [varifocal] Horizontal field of view: 56.9° to 3.2° (wide-tele), Vertical field of view: 34° to 1.8° (wide-tele), Diagonal field of view: 63.7° to 3.7(wide-tele) |
| Aperture | [fixed-focal] F1.0; [varifocal] F1.6 |
| PTZ | |
| Movement Range (Pan) | 360° |
| Movement Range (Tilt) | -15° to 90° (auto flip) |
| Pan Speed | pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s |
| Tilt Speed | tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s |
| Proportional Zoom | yes |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans |
| Power-off Memory | yes |
| Park Action | preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan |
| 3D Positioning | yes |
| PTZ Status Display | yes |
| Preset Freezing | yes |
| Scheduled Task | preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output |
| Video | |
| Max. Resolution | 2560 x 1440 |
| Stream Type | main stream, sub-stream |
| Main Stream | 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 20 fps (704 × 480, 640 × 480, 352 × 240) |
| Video Compression | H.265, H.264, MJPEG |
| Video Bit Rate | 32 kbps -to 16384 kbps |
| Video Bit Rate | 32 kbps to 16384 kbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | yes |
| H.265+ | yes |
| SVC | yes |
| ROI | Fixed region, main stream, sub-stream and third stream respectively support eight fixed areas |
| Audio | |
| Audio Compression | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM |
| Audio Bit rate | G.722.1: 16Kbps, G.711ulaw: 64Kbps, G.711alaw: 64Kbps, MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps; AAC: 16 kbps, 32 kbps, 64 kbps |
| Audio Sampling Rate | MP2L2: 16kHz, 32kHz, 48kHz, AAC: 16kHz, 32kHz, 48kHz,PCM: 8kHz, 16kHz, 32kHz, 48kHz |
| Environment Noise Filtering | yes |
| Smart Features | |
| Face Capture | yes |
| Basic Event | audio exception, motion detection, alarm input, alarm output, video tampering alarm, exception |
| Smart Event | intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection |
| Smart Record | ANR, Dual-VCA |
| Alarm Linkage | preset, patrol scan, pattern scan, memory card video recording, alarm output, sending email, notify surveillance center, upload to FTP, audible warning, white light flashing |
| Warning and Alert | audible warning, white light warning |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) |
| Network | |
| Network Storage | NAS (NFS, SMB/ CIFS), ANR |
| Protocols | IPv4/IPv6,HTTP,HTTPS, 802.1x,Qos,FTP,SMTP, UPnP,SNMP,DNS,DDNS,NTP, RTSP,RTCP,R TP,TCP/IP,UDP, IGMP,ICMP,DHCP,PPPoE, Bonjour,Websocket,Websockets |
| API | ISAPI, Hikvision SDK, Hik-Connect, ISUP, Open Network Video Interface |
| Simultaneous Live View | Up to 20 channels |
| User/Host | Up to 32 users |
| Security Measures | Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | IE10-11, Chrome 57+, Firefox 52+, Safari 12+ |
| Interface | |
| Communication Interface | RJ45, self-adaptive 10M/100M Ethernet port |
| On-board Storage | support microSD/microSDHC/microSDXC cards, up to 256 GB |
| Alarm Input | 2 alarm inputs |
| Alarm Output | 1 alarm output |
| Audio Input | 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10% |
| Audio Output | 1 audio output |
| Supplement Light | |
| IR Distance | Up to 200 m |
| White Light Distance | Up to 30 m |
| Visual Alarm | White light |
| General | |
| Power | 24 VAC, Hi-PoE |
| Power Consumption and Current | Max. 42 W, including max. 15 W for supplement light |
| Operating Conditions | -30°C to 65°C (-22°F to 149°F), humidity lower than 90%RH |
| Reset | yes |
| Demist | yes |
| Material | ADC12 |
| Dimensions | Ø 226.1 mm × 362.5 mm |
| Weight | approx. 4.9 kg |
| Approval | |
| Protection | IP66, IK10 (excluding glass window), 6000V Lightning Protection, Surge Protection and Voltage Transient Protection |
