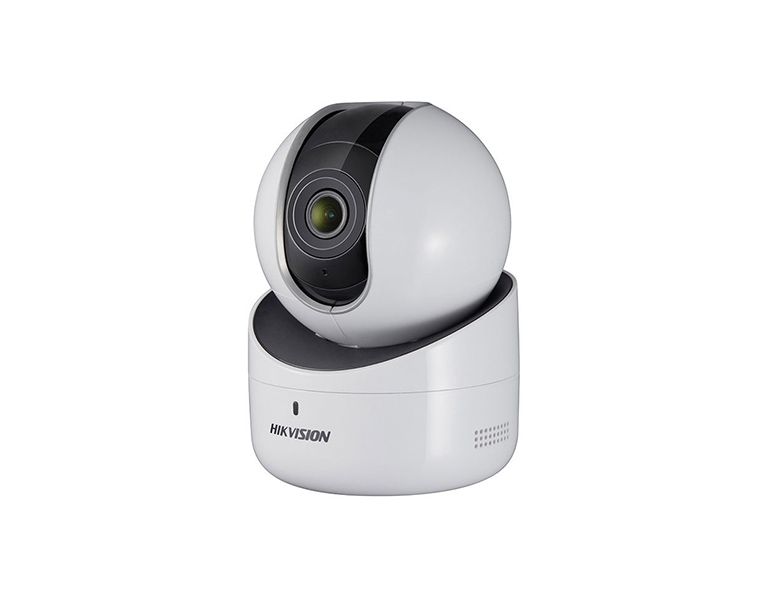

DS-2CV2Q21FD-IW(W)-2.8.jpg Package includes power supply!!!
• High quality imaging with 2 MP resolution
• Efficient H.264 compression technology
• Clear imaging even with strong back lighting due to DWDR technology
• Up to 128 GB SD card slot for storage
• Provides real-time security via two-way audio
• Wi-Fi connection and easy installation
• Hik-Connect cloud service and app for remote management and viewing of devices
| Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p. At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C. This product is CE marked, P.D. 98/2017 This product is intended for indoor use. |
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 36 months |
| Specifications | |
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Min. Illumination | Color: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Day & Night | IR Cut Filter |
| WDR | DWDR |
| Angle Adjustment | 2.0 mm: Pan: 0°to 355°, Tilt: -10°to 85° 2.8 mm: Pan: 0°to 355°, Tilt: -10°to 90° |
| Lens | |
| Lens Type | Fixed lens, 2.0/2.8 mm |
| Aperture | 2.0 mm: F2.2 2.8 mm: F2.0 |
| FOV | 2.0 mm@F2.2: horizontal FOV: 136°, vertical FOV: 80°, diagonal FOV: 153° 2.8 mm@F2.0: horizontal FOV: 112°, vertical FOV: 60°, diagonal FOV: 132° |
| Lens Mount | M12 |
| Illuminator | |
| IR Range | Up to 10 m |
| Wavelength | 850 nm |
| Video | |
| Max. Resolution | 1920 × 1080 |
| Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 720) |
| Sub Stream | 50Hz: 25fps (640 × 360) 60Hz: 30fps (640 × 360) |
| Video Compression | Main stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264/MJPEG |
| H.264 Type | Baseline Profile/Main Profile |
| H.265 Type | Main Profile |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Audio | |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Smart Feature-Set | |
| Basic Event | Motion tracking, motion detection, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Linkage Method | Upload to NAS/memory card, notify surveillance center, trigger recording, trigger capture, audible warning |
| Image | |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Setting | Saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software |
| Day/Night Switch | Day/Night/Auto/Schedule |
| SNR | > 50dB |
| Network | |
| Network Storage | microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS) |
| Protocols | TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour |
| API | ISAPI, SDK |
| Security | Password protection, complicated password, IP address filter, watermark |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 32 users, 3 levels: administrator, operator and user |
| Client | iVMS-4200, Hik-Connect, iVMS-4500, iVMS-5200 |
| Interface | |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Audio | Built-in microphone&speaker |
| On-board storage | Built-in micro SD/SDHC/SDXC slot, up to 256 G |
| Wi-Fi | |
| Protocol | IEEE802.11b, 802.11g, 802.11n |
| Frequency | 2.4 GHz - 2.4835 GHz |
| Channel Bandwidth | 20/40MHz Support |
| Modulation | 802.11b: DSSS, 802.11g: OFDM, 802.11n(20MHz&40MHz): OFDM |
| Security | 64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK |
| Transfer Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps |
| Wireless Range | 80 meters (The performance varies based on actual environment) |
| General | |
| General Function | Anti-flicker, heartbeat, mirror, password protection, flash log |
| Reset | Reset via reset button on camera body, web browser and client software |
| Startup and Operating Conditions | -10 °C to 40°C, humidity 95% or less (non-condensing) |
| Storage Conditions | -10 °C to 40°C, humidity 95% or less (non-condensing) |
| Power Supply | 5 VDC ± 10%, micro USB interface |
| Power Consumption and Current | 5 VDC, 1.60 A, max. 8 W |
| Material | Plastic |
| Dimensions | Camera: Ø82.4 × 113.6 mm |
| Weight | Camera: Approx. 280 g With package: Approx. 550 g |
| Approval | |
| EMC | 47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015 |
| Safety | UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015, IEC/EN 60950-1 |
| Chemistry | 2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/200 |
