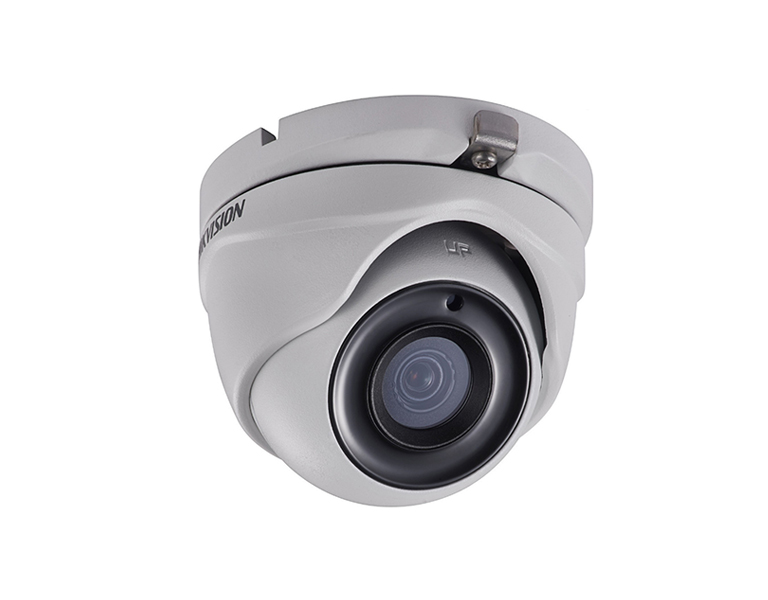

DS-2CE56D8T-ITMF.jpg CAUTION!!! Package doesn't include power supply!!!
• 2 MP high performance CMOS
• Ultra-low light
• 1920 x 1080 resolution
• 2.8 mm fixed focal lens
• 130 dB true WDR, 3D DNR
• EXIR 2.0, smart IR, up to 30 m IR distance
• 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
• IP67
• Up the coax (HIKVISION-C)
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 36 months |
| Specifications | |
| Camera | |
| Image Sensor | 2.0 megapixel progressive scan CMOS |
| Signal System | PAL/NTSC |
| Resolution | 1920 (H) x 1080 (V) |
| Frame Rate | PAL: 1080p@25fps NTSC: 1080p@30fps |
| Min. illumination | Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
| Lens | 2.8 mm fixed lens |
| Horizontal Field of View | 104° |
| Lens Mount | M12 |
| Day & Night | IR cut filter |
| WDR (Wide Dynamic Range) | ≥ 130 dB |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| Menu | |
| Image Mode | STD/HIGH-SAT |
| AGC | Support |
| Day/Night Mode | Auto/Color/BW (Black White) |
| White Balance | Auto/Manual |
| AE (Auto Exposure) Mode | WDR/BLC/HLC/Global |
| Privacy Mask | 4 programmable privacy masks |
| Motion Detection | 4 programmable motion areas |
| NR (Noise Reduction) | 3D/2D |
| Language | English |
| Functions | Brightness, Sharpness, Mirror, Smart IR, HLC |
| Interface | |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| General | |
| Operating Conditions | -40 °C to 60 °C, humidity: 90% or less (non-condensation) |
| Power Supply | 12 VDC ±25% *You are recommended to use one power adapter to supply the power for one camera |
| Power Consumption | Max. 3.4 W |
| Ingress Protection | IP67 |
| Material | Metal |
| IR Range | Up to 30 m |
| Communication | Up the coax, Protocol: HIKVISION-C (TVI output) |
| Dimensions | 89.47 mm x 68.2 mm |
| Weight | Approx. 238 g |
