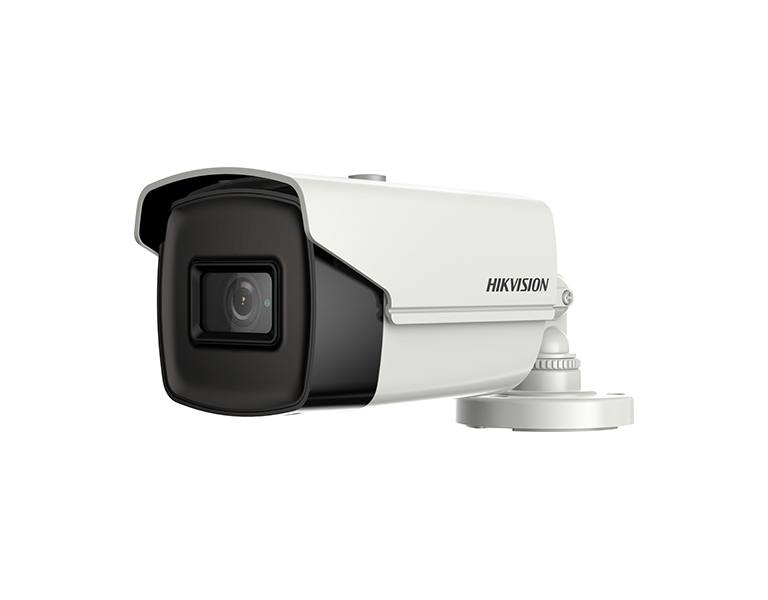

DS-2CE16U7T-IT3F.jpg CAUTION!!! Package doesn't include power supply!!!
• 8.29 MP, 3840 x 2160 resolution
• Ultra-low light
• 130 dB true WDR, 3D DNR
• 2.8 mm fixed lens
• Smart IR, up to 60 m IR distance
• 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
• IP67
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 36 months |
| Specifications | |
| Camera | |
| Image Sensor | 8.29 MP CMOS |
| Signal System | PAL/NTSC |
| Frame Rate | TVI: , 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps AHD: , 8MP@15fps CVI: , 8MP@15fps CVBS: P/N |
| Resolution | 3840 (H) x 2160 (V) |
| Min. Illumination | 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/12.5 s to 1/50,000 s NTSC: 1/15 s to 1/50,000 s |
| Lens | 2.8 mm fixed lens |
| Horizontal Field of View | 102° |
| Lens Mount | M16 |
| Day & Night | ICR |
| WDR (Wide Dynamic Range) | ≥130 dB |
| Angle Adjustment (Bracket) | Pan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360° |
| Menu | |
| Image Mode | STD/HIGH-SAT |
| AGC | Yes |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| White Balance | Auto/Manual |
| AE (Auto Exposure) Mode | Global/BLC/HLC/WDR |
| Noise Reduction | 3D DNR |
| Language | English |
| Functions | Brightness, Sharpness, Mirror, Smart IR |
| Interface | |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| General | |
| Operating Conditions | -40 °C to 60 °C, humidity: 90% or less (non-condensing) |
| Power Supply | 12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera |
| Power Consumption | Max. 4.2 W |
| Ingress Protection | IP67 |
| Material | Metal |
| IR Range | Up to 60 m |
| Communication | HIKVISION-C |
| Dimensions | 81.9 mm x 86.7 mm x 217.9 mm |
| Weight | Approx. 560 g |
