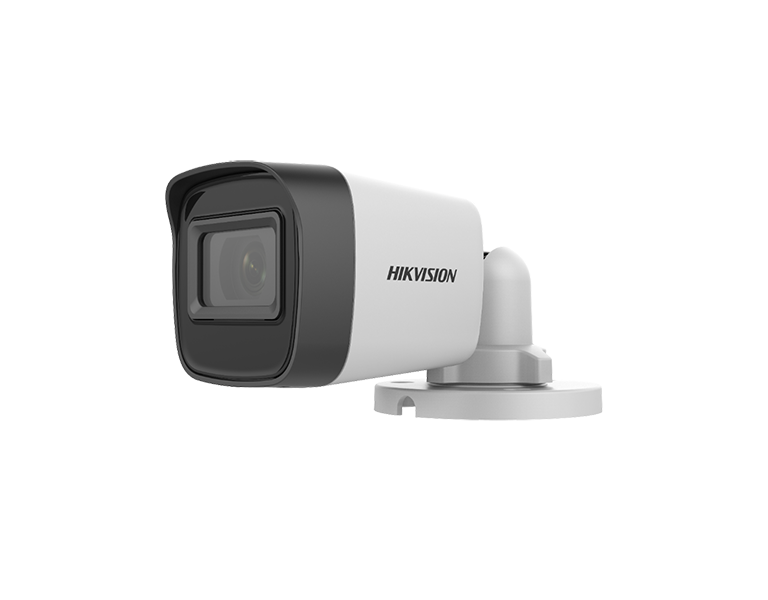

DS-2CE16H0T-ITPF.jpg CAUTION!!! Package doesn't include power supply!!!
• 5 MP high performance CMOS
• 2560 x 1944 resolution
• 2.8 mm fixed focal lens
• smart IR, up to 25 m IR distance
• OSD menu, 2D DNR, DWDR
• 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
• IP67
• Up the coax (HIKVISION-C)
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 36 months |
| Specifications | |
| Camera | |
| Image Sensor | 5 MP CMOS image sensor |
| Resolution | 2560 (H) x 1944 (V) |
| Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s |
| Lens | 2.8 mm fixed lens |
| Field of View | horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110° |
| Lens Mount | M12 |
| Day & Night | ICR |
| Angle Adjustment | Pan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360° |
| Synchronization | Internal synchronization |
| Frame Rate | TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps AHD: 5M@20fps, 4M@30fps, 4M@25fps CVI: 4M@30fps, 4M@25fps CVBS: PAL/NTSC |
| Menu | |
| Image Mode | STD/HIGH-SAT |
| AGC | Yes |
| D/N Mode | Auto/Color/BW (Black and White) |
| White Balance | Auto/Manual |
| AE (Auto Exposure) Mode | DWDR/BLC/HLC/Global |
| Noise Reduction | 2D DNR |
| Language | English |
| Functions | Brightness, Sharpness, Mirror, Smart IR |
| Interface | |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| General | |
| Operating Conditions | -40 °C to 60 °C, Humidity 90% or less (non-condensation) |
| Power Supply | 12 VDC ±25% |
| Power Consumption | Max. 4.3 W |
| Ingress Protection | IP67 |
| Material | Plastic |
| White Light | Up to 25 m |
| Communication | HIKVISION-C |
| Dimensions | 60.9 mm x 57.9 mm x 138.8 mm |
| Weight | Approx. 147 g |
