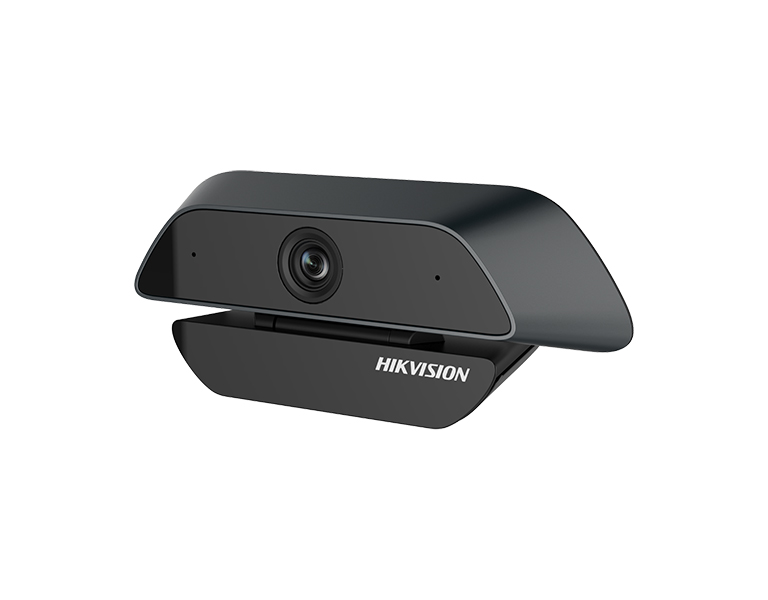

DS_U12.jpg • 2 MP CMOS
• High quality imaging with 1920 x 1080 resolution
• Low-distortion lens
• Min. illumination: 0.1 Lux @ (F1.2, AGC ON)
• AGC for self-adaptive brightness
• Built-in microphone with clear sound
• Type A interface, supporting USB 2.0 protocol. Plug-and-play, no need to install driver software
| Εγγυήσεις - Επιστροφές: | |
| Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
| 20 ημέρες | 36 μήνες |
| Specifications | |
| Camera | |
| Image Sensor | 2 MP CMOS |
| Signal System | PAL/NTSC |
| Frame Rate | MJPG: 1920 x 1080 @ 30 fps/25 fps 1280 x 960 @ 30 fps/25 fps 1280 x 720 @ 30 fps/25 fps 640 x 480 @ 30 fps(default)/25 fps YUV2: 1280 x 960 @ 7 fps 1280 x 720 @ 10 fps 640 x 480 @ 25 fps |
| Resolution | 1920 (H) x 1080 (V) |
| Min.Illumination | 0.1 Lux @ (F1.2, AGC ON) |
| Shutter Time | PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s |
| Lens | 3.6 mm fixed focal lens |
| Field of View | horizontal FOV: 81°, vertical FOV: 50°, diagonal FOV: 90° |
| Lens Mount | M8 |
| Day & Night | Color |
| Angle Adjustment | pan: 0°; tilt: -10° to 30°; ratation: 0° |
| Cable Length | 2 m |
| Depth of Field | 0.4 m to ∞ |
| Interface | |
| Video Output | USB 2.0 |
| Audio In | Built-in mic |
| Operating System | Windows XP/7/10, Android, Linux |
| General | |
| Operating Conditions | -10°C to 40°C, Humidity: 90% or less (non-condensing) |
| Power Supply | DC 5V ± 15% (USB) |
| Consumption | Max. 1.0 W |
| Dimension | 118 mm x 46.8 mm x 54.9 mm |
| Weight | Approx. 140 g |
| Accessory | |
| Packing List | Camera x 1 Quick Start Guide x 1 |
| Function | |
| LED Indicator | Red: Standby Blue: Normally Working |
| White Balance | Auto |
