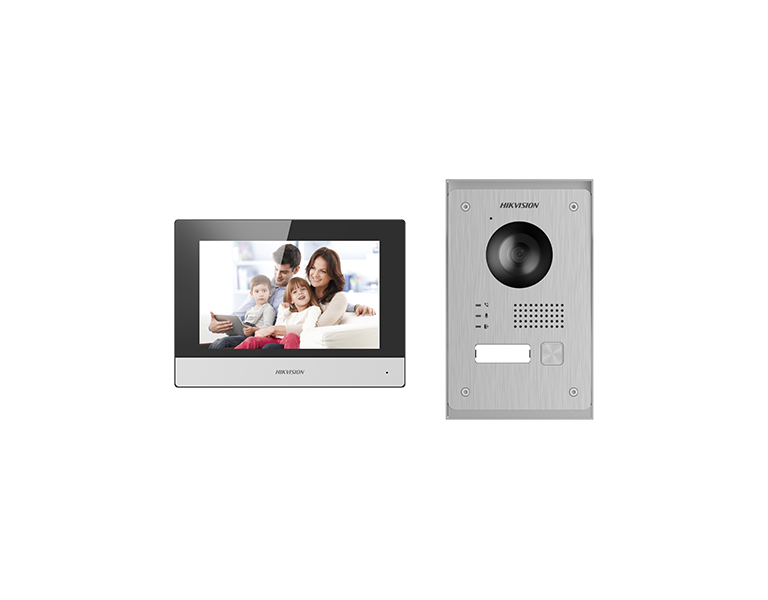

DS-KIS703-P.jpg • Two-Wire Indoor Station
• Receives Video Call And Unlocks On Mobile App Anywhere, Anytime
• 7 inch Touch-Screen, User Friendly Interface, Plug & Play
• Easy, Cost-Efficient Installation
• Villa Door Station:
• High quality imaging with 2 MP resolution
• Easy, Cost-Efficient Installation
• User Friendly Design, Name tag, Communication status LED indicator
• IP65 water resistant, preventing water ingress for outdoor use
| Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 2400 – 2483,5 MHz, προβλέπει μέγιστη ισχύ εκπομπής τα 100mW e.i.r.p. Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T. Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017 Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς χώρους. |
| Εγγυήσεις - Επιστροφές: | |
| Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
| 20 ημέρες | 36 μήνες |
| Specifications | |
| System | |
| Operation system | Embedded Linux operation system |
| Operation method | Single-button |
| Flash | 32 MB |
| RAM | 256 M |
| Video Parameters | |
| Camera | 2MP HD camera |
| Night vision | Low illumination IR supplement mode:3 m |
| BLC | Support |
| DNR | Support |
| WDR | True WDR |
| Field of view | Horizontal: 144° Vertical: 95° |
| Video compression standard | H.264 |
| Stream | Main stream: 1080p@30fps, 720p@30fps Sub stream: 4CIF |
| Resolution | Main stream: 1920 x 1080p, 720p Sub stream: 704 x 576 |
| Motion detection | Support |
| Anti-flicker frequency | 50 Hz, 60 Hz |
| Audio parameters | |
| Audio intercom | Two-way audio communication |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
| Audio compression standard | G.711 U, G.711 A |
| Audio compression rate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Network | |
| Wired network | 10/100 Mbps Ethernet |
| Network protocol | TCP/IP, RSTP |
| Access control parameters | |
| Reading frequency | Not supported |
| Relay | 2 |
| Interfaces | |
| Output | 12 V/1 A output |
| Debugging port | 1 |
| Alarm input | 2 |
| Grounding | 1 |
| Two-wire interface | 1 |
| TAMPER switch | 1 |
| General | |
| Protection level | IP65 |
| Indicator | 3 |
| Power supply | From indoor station |
| Power consumption | < 10W |
| Heater | Support |
| Working temperature | -40° C to +60° C(-40° F to 140° F) |
| Working humidity | 10% to 95% |
| Dimension | 169 x 110 x 31 mm |
| Installation | Surface mounting, flush mounting |
| Weight | 476 g |
| Indoor Station | |
| System parameters | |
| Memory | 128 MB |
| Flash | 32 MB |
| Operation system | Embedded Linux operation system |
| Display parameters | |
| Display screen | 7-inch TFT touch screen |
| Display resolution | 1024 x 600 |
| Operation method | Capacitive touch screen |
| Brightness | Adjustable |
| Audio parameters | |
| Audio input | Built-in microphone |
| Audio output | Built-in loudspeaker |
| Volume | Local adjustable |
| Audio compression standard | G.711 U, G.711 A |
| Audio quality | Noise suppression and echo cancellation |
| Network parameters | |
| Wired network | 10/100 Mbps self-adaptive |
| Wireless network | Wi-Fi 802.11 b/g/n |
| Interfaces | |
| Two-wire interface | 1 |
| Alarm input | 8 |
| Debugging port | 1 channel reserved |
| RS485 | 1 |
| General | |
| Power supply | 24 VDC |
| Power consumption | ≤ 8 W |
| Working temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working humidity | 10% to 90% |
| Dimension | 200 x 140 x 23.6 mm |
| Weight | 334.5 g |
